Products / Chemical Industry
Stainless steel water treatment and filtration equipment for the chemical industry — multi-bag filter housings, SS316L corrosion-resistant vessels, FRP ion-exchange tanks and high-flow cartridge systems for process water, solvent filtration and wastewater reuse.

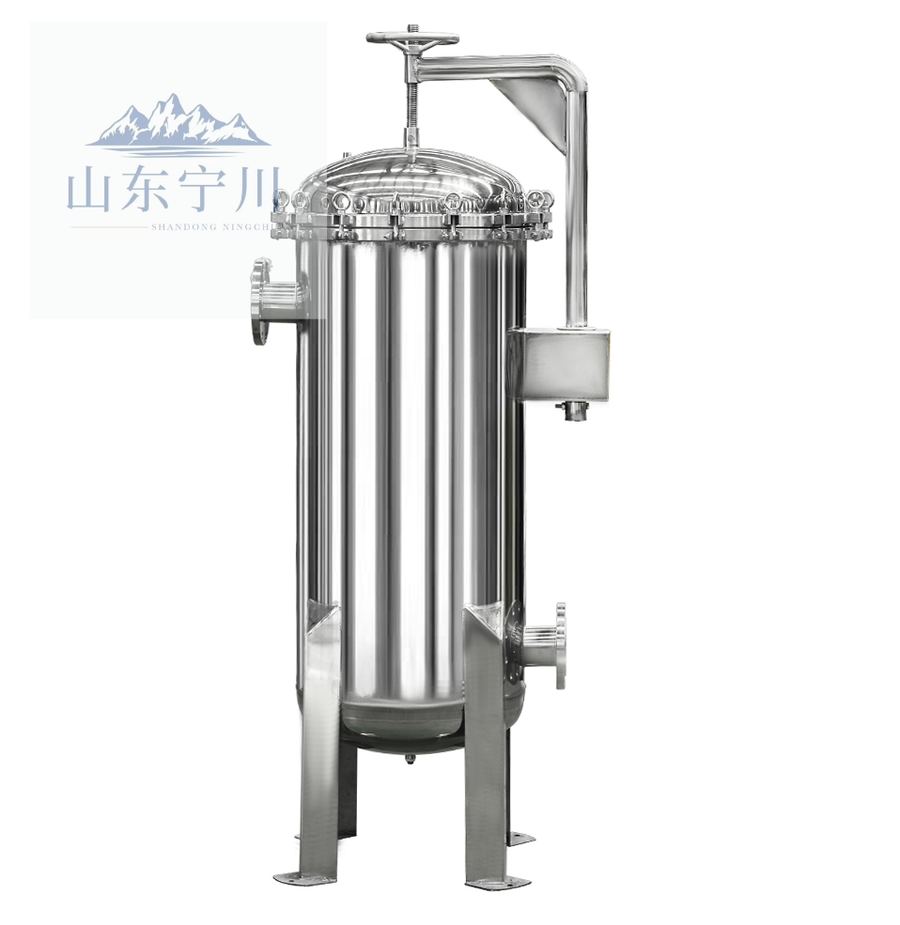

Shandong Ningchuan manufactures stainless steel filtration and water treatment equipment for chemical processing plants: multi-bag filter housings for solvent and resin filtration, SS316L vessels for corrosive media, FRP pressure tanks for ion exchange and RO pretreatment, and high-flow cartridge systems for process water polishing.
Chemical duty is hard on hardware. Chlorides, acids and solvents attack ordinary equipment, so we build in SS316 / SS316L as standard, with seal compounds (EPDM, NBR, Viton, PTFE) selected against your actual liquid and temperature. Every vessel is pressure-tested in our own workshop before shipment.
We work with traders, EPC contractors and plant owners worldwide. Send us your flow rate, liquid, solids content and target micron rating — our engineers will propose the right vessel configuration, free of charge, usually within one working day.
| Vessel material | SS304 / SS316 / SS316L (carbon steel / lined on request) |
|---|---|
| Filtration range | 0.5 – 200 µm (bag or cartridge media) |
| Flow range | 10 – 300 m³/h per vessel; multi-vessel skids available |
| Design pressure | 0.6 / 1.0 / 1.6 MPa (150 / 225 PSI), higher on request |
| Seals | EPDM / NBR / Viton / PTFE — matched to the process liquid |
| Bag / cartridge sizes | #1 / #2 bags; 10 – 40 inch cartridges; 222 / 226 end caps |
| FRP tanks | φ350 – φ1800 mm for ion exchange and media filters |
| Connections | ANSI / DIN / JIS flange, thread or clamp |
| Cover type | Swing-bolt quick open / clamp / davit arm |
| Certificates | Material and pressure test certificates on request |
Specifications above are our standard range. Custom sizes, materials, ports and pressure ratings are available — please send your working conditions for a tailored offer.
Filtration, pretreatment and polishing
2 to 8 bags in parallel for high-flow solvent, resin, brine and coating filtration — fewer change-outs, lower running cost.
SS316L housings with Viton or PTFE seals for acids, chlorides and aggressive process streams.
Ion exchange, softening, activated carbon and multimedia filters ahead of RO — lighter than steel, no corrosion.
40-inch high-flow cartridges for large process water and wastewater reuse streams, with quick-change housings.
Not sure which model fits your project? Send us your flow rate, liquid and filtration requirement — our engineers will recommend the right configuration, free of charge.
Get Free Selection Advice
Common questions from overseas buyers about chemical industry water treatment equipment — click a question to expand.
For chloride-containing or mildly acidic streams we normally recommend SS316L with EPDM or Viton seals; for stronger acids and solvents we suggest PTFE or FKM seals and, where needed, lined or special-alloy vessels. Tell us the liquid, concentration and temperature and we will confirm the right combination.
Yes. Our multi-bag housings hold 2 to 8 bags in parallel and our 40-inch high-flow cartridge vessels are designed for large continuous streams. Multi-vessel skids can be arranged for duty/standby or sequential change-out so the line never stops.
Every vessel is pressure-tested before leaving our workshop, and material certificates (mill test reports) plus pressure test reports can be issued with the shipment on request.
Yes. As a manufacturer we build to your drawing: vessel diameter, bag or cartridge quantity, nozzle size and position, flange standard (ANSI / DIN / JIS), jackets and surface finish. OEM and ODM orders are welcome.
Standard housings and tanks are typically 10–20 working days; custom chemical-duty vessels and multi-vessel skids take 20–35 working days. We ship with full export packing and documentation from Qingdao port.
40 inch high flow cartridge with large flux and low pressure drop.
View Details →High flow 6-bag filter housing for large volume filtration.
View Details →

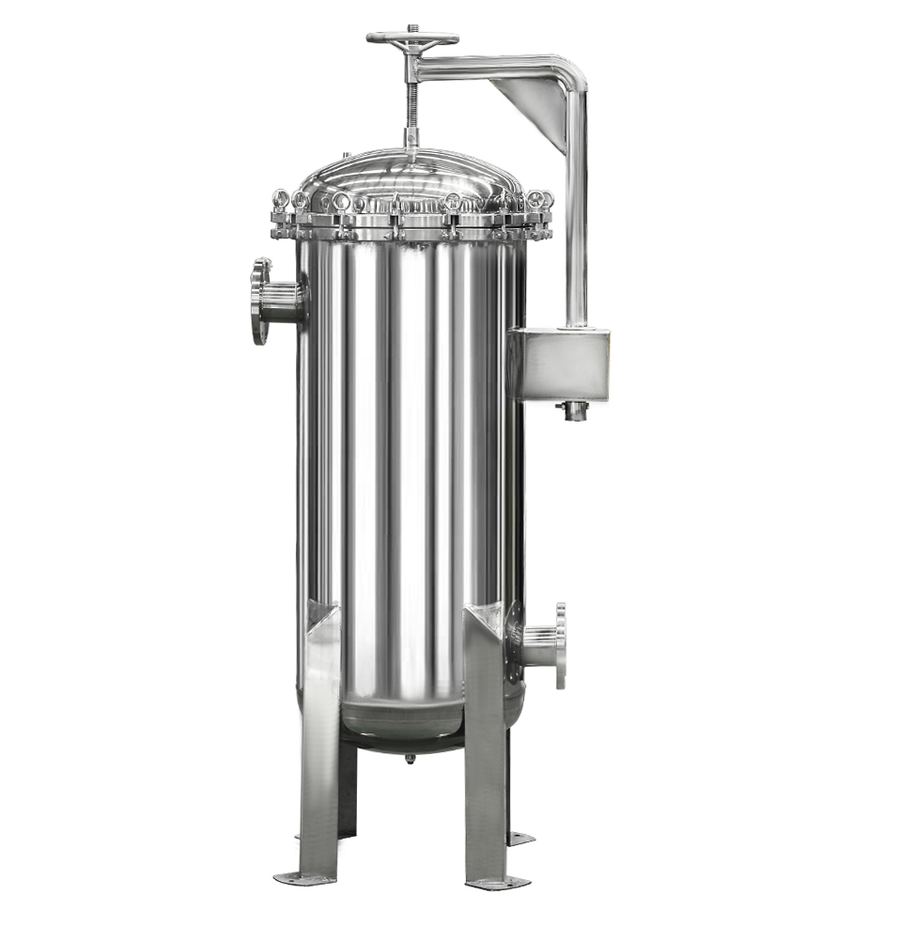

Sanitary stainless steel bag filter housing, widely used across industries.
View Details →
FRP and stainless steel tanks for sand & carbon mechanical filtration.
View Details →
